Automatic screen printer/

Paper cup 1 color screen printing machine

Model:DX-SPM400

Max printing diameter:¢120mm

Printing color: 1 color or color processing

Cup fixture: 12 stations

Printing speed: about 1500pcs/hr

Machine size: L100*W100*H180cm+L120*W60*H80cm

Power: AC220V/1500W

N.W: 350KGS

Processing:automatic feeding-printing-ink curing-unloading

  • Product Detail
  • Necessary product details of you product

paper cup 1 color screen printing machine with 12 stations

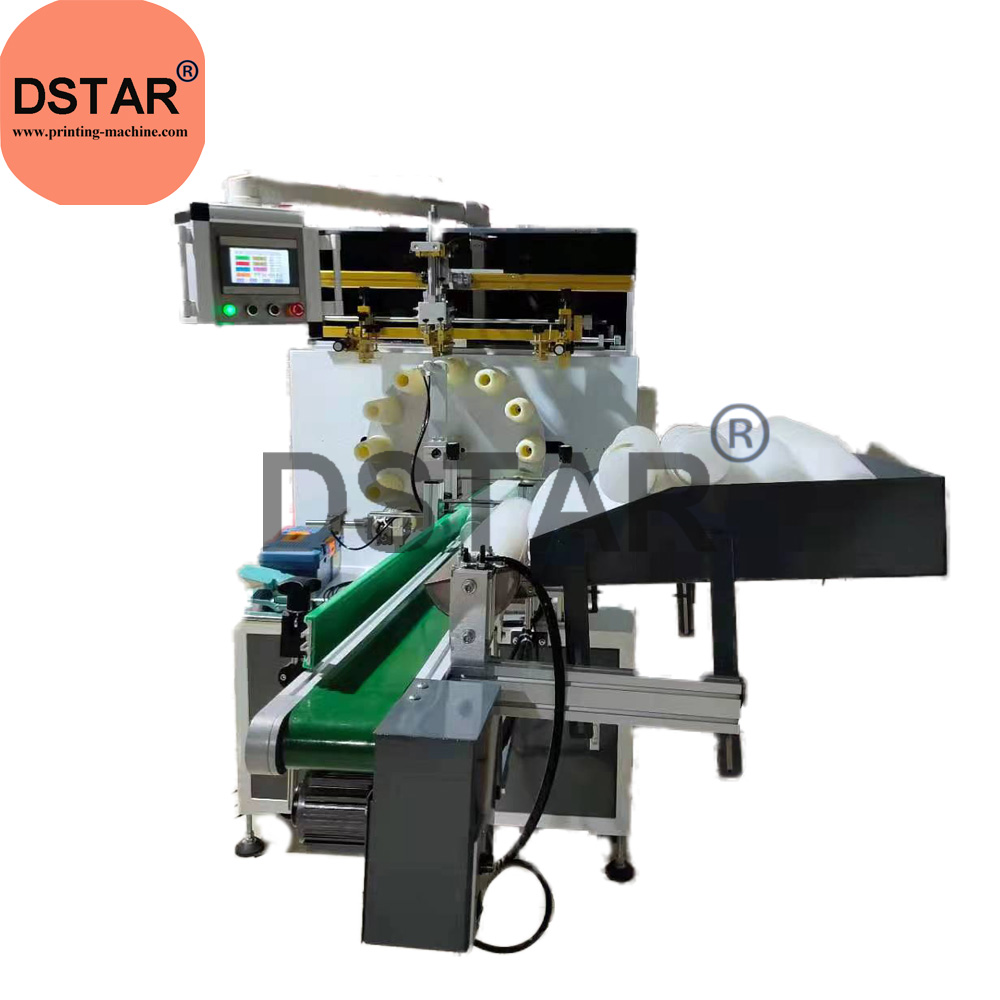

Paper cup 1 color screen printing machine

Model:DX-SPM400

maxprintingdiameter:¢120mm

Printing color: 1 color or color processing

Cup fixture:12 stations

Printing speed: about1500pcs/hr

Machine size: L100*W100*H180cm+L120*W60*H80cm

Power:AC220V/1500W

N.W:350KGS

Processing:automaticfeeding-

printing-ink curing-unloading

1.PLC

2.Servo

3.positioning sensor

4.automatic feeding and unloading

1.Screen printing plate

2.screen ink

3.Squeegee(or squeegee with handle)

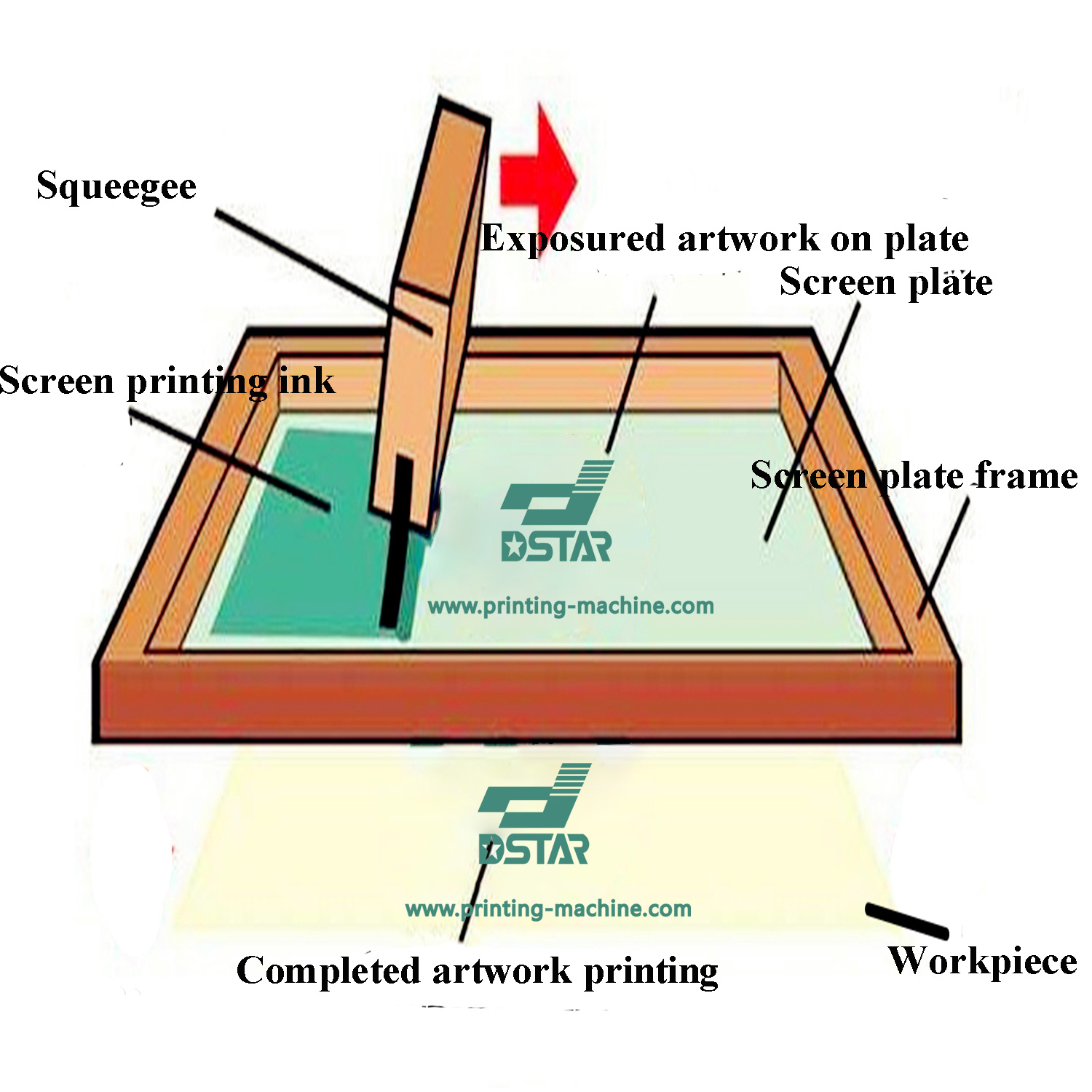

The basic principle of screen printing is: use the basic principle of the screen printing plate’s graphic part of the mesh to penetrate ink, and the non-graphic part of the mesh to be impermeable to ink. When printing, pour ink into one end of the screen printing plate, apply a certain amount of pressure on the ink part of the screen printing plate with the scraper, and at the same time, print towards the other end of the screen printing plate. The ink is squeezed by the scraper from the mesh of the graphic part to the substrate during the movement.

Please share your product details as follow so we can make a appropriate machine proposal for you:

1.Cup/bottle diameter (height,cup mouth diameter,cup bottom diameter)

2.Maximum printing color

3.Printing area size

4.Product material

5.Product pictures
