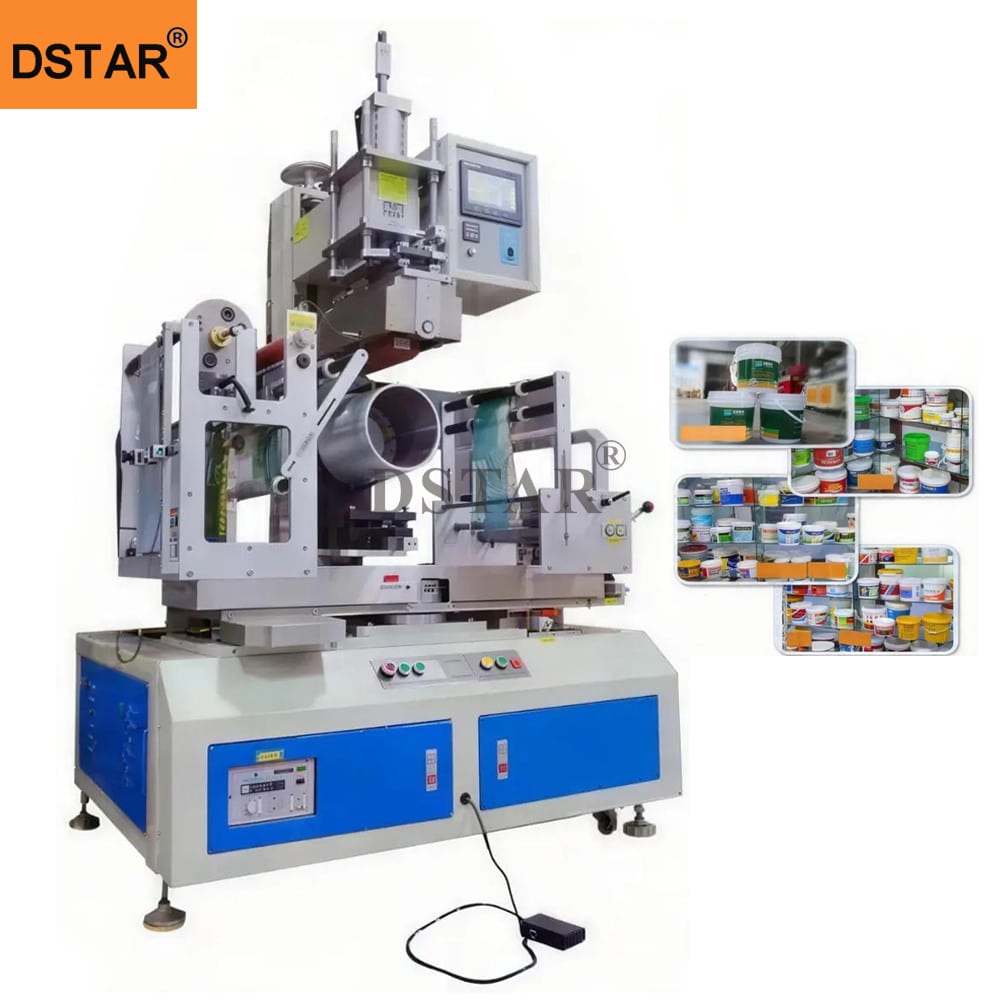

Paint Pail Printing Machine DX-CNC30-P

DX-CNC30-P Pail Printing Machine

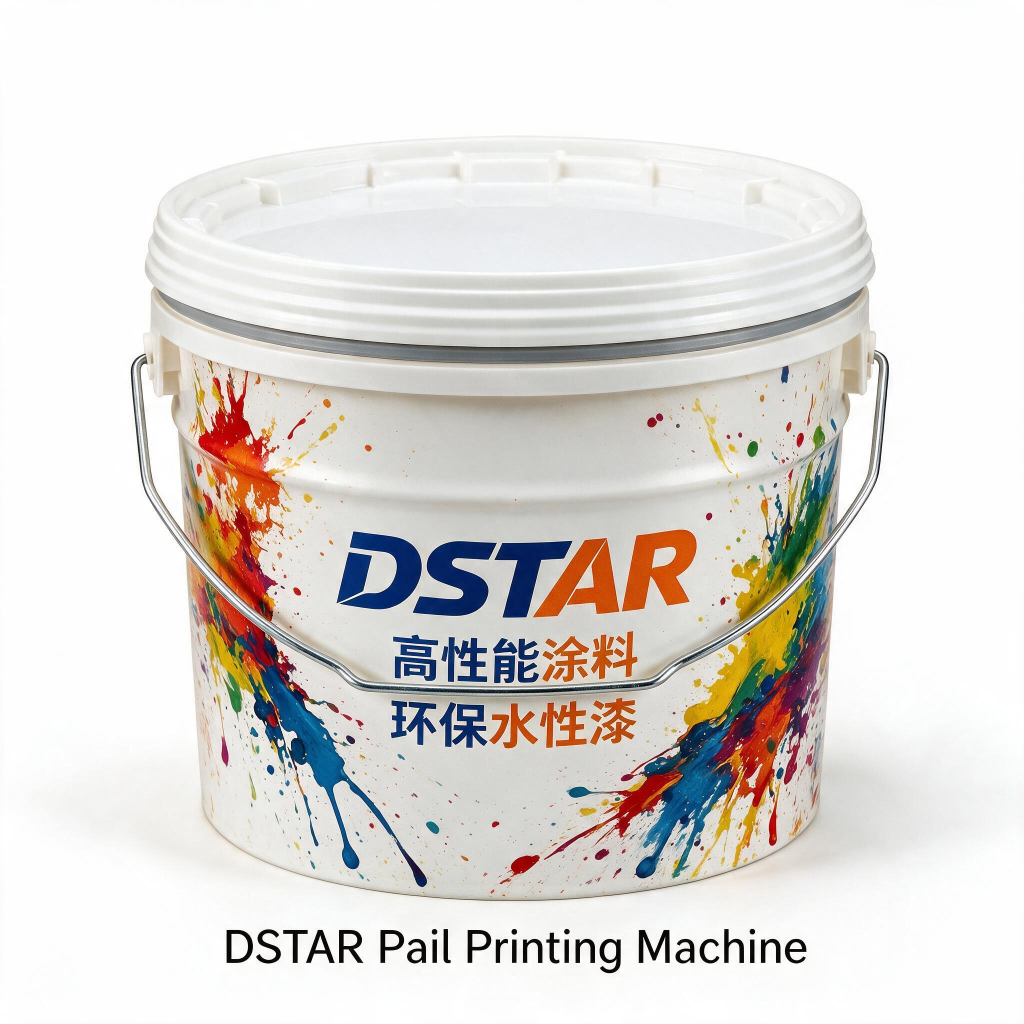

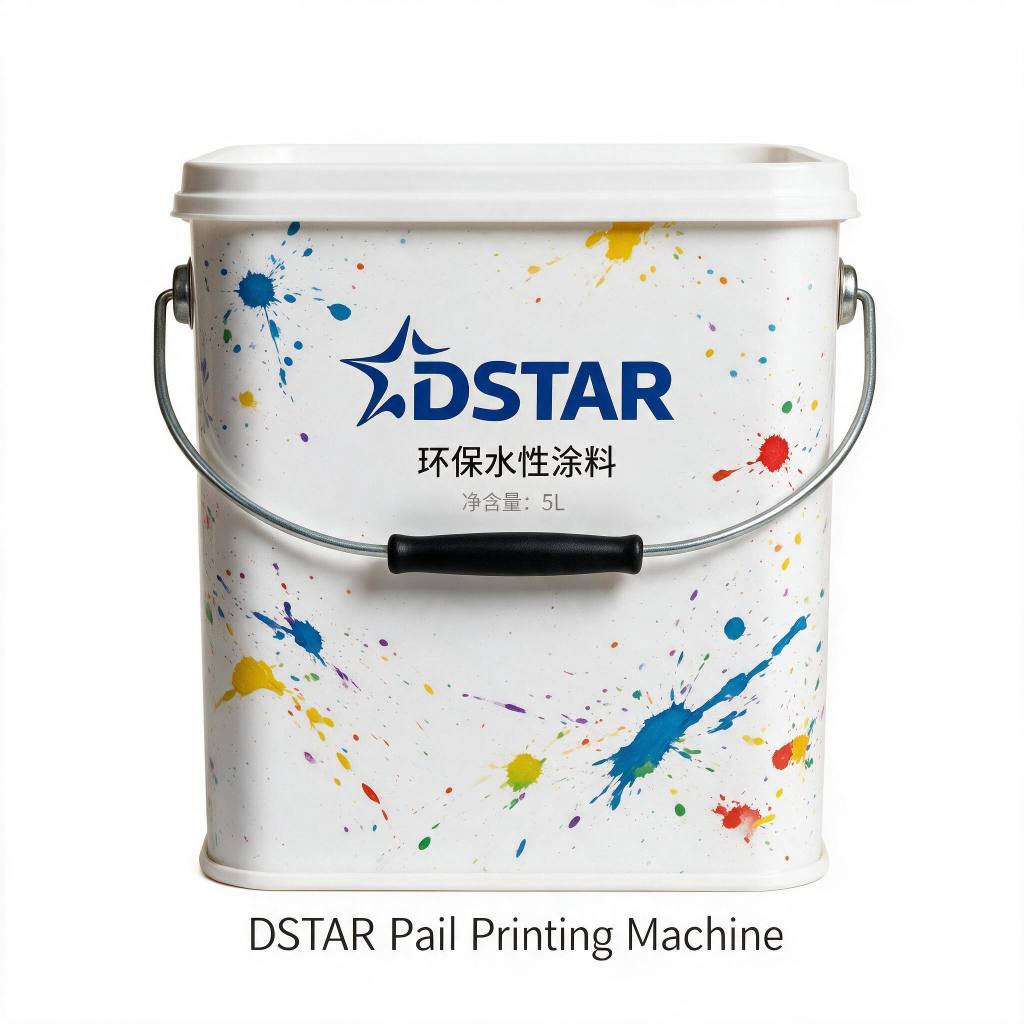

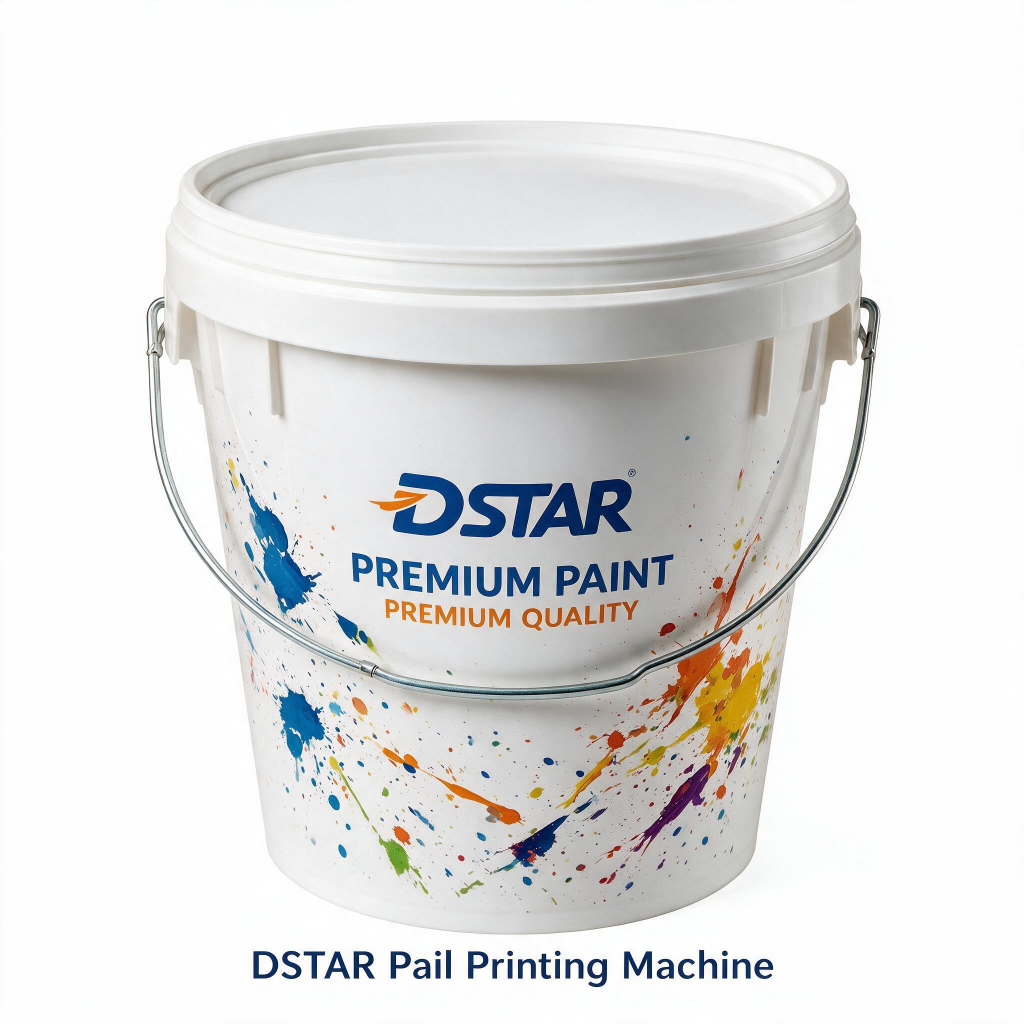

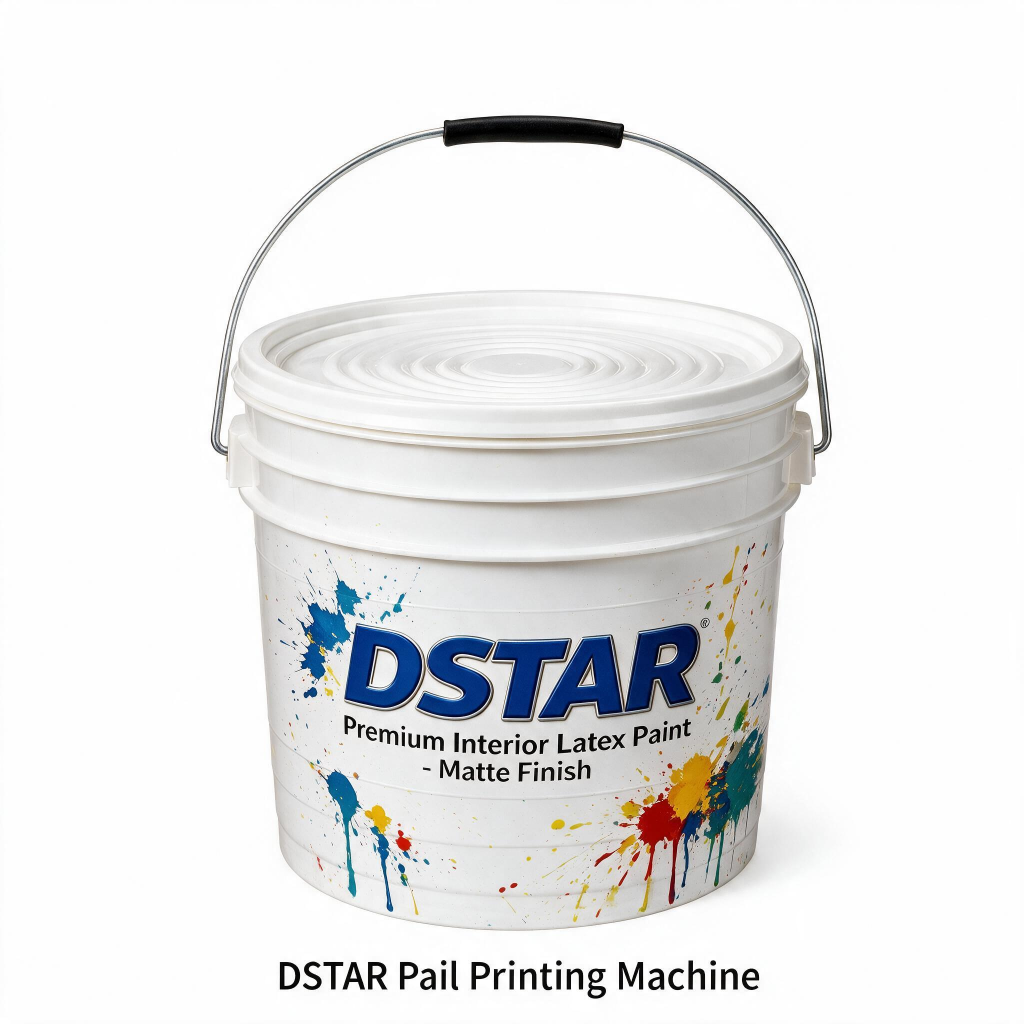

The DX-CNC30-P is a high-performance servo-driven heat transfer machine specifically engineered for 1-25L conical round buckets, square pails, and oval containers. It features a reserved port for direct connection to robotic arms, enabling seamless integration for fully automated injection molding and transfer printing production lines.

• Heavy-Duty Frame: Built with thickened steel and reinforced welded ribs on the main column, ensuring exceptional structural rigidity and long-term durability.
• Automotive-Grade Finish: The chassis is coated with automotive-grade paint and high-temperature baked, providing superior rust resistance, an elegant appearance, and an eco-friendly, non-toxic surface that resists fading.
• Precision Components: Utilizes 304-grade stainless steel screws and high-quality Japanese NSK bearings throughout, guaranteeing the machine’s reliability and extended lifespan.
• CNC-Machined Parts: Critical aluminum alloy components are precisely machined by large-scale CNC centers and finished with anodized sandblasting for a premium, high-end look.

• PLC & HMI Interface: Equipped with a smart PLC system and a user-friendly touchscreen interface. It can intelligently store multiple operating parameter sets for quick recall and easy operation.
• Fully Servo-Driven System: All movements—including machine operation, fixture positioning, and film left/right/forward/backward motion—are powered by high-precision Xinje servo motors, effectively eliminating wrinkling issues during transfer.
• Specialized Swing System: Features a dedicated pail swing system that requires only three numeric inputs for the machine to automatically calculate and execute the optimal operation trajectory.
• Constant Tension Control: The heat transfer film tension is monitored in real-time by pressure sensors and controlled by a high-precision servo motor. This maintains constant tension automatically, eliminating the need for manual adjustments.

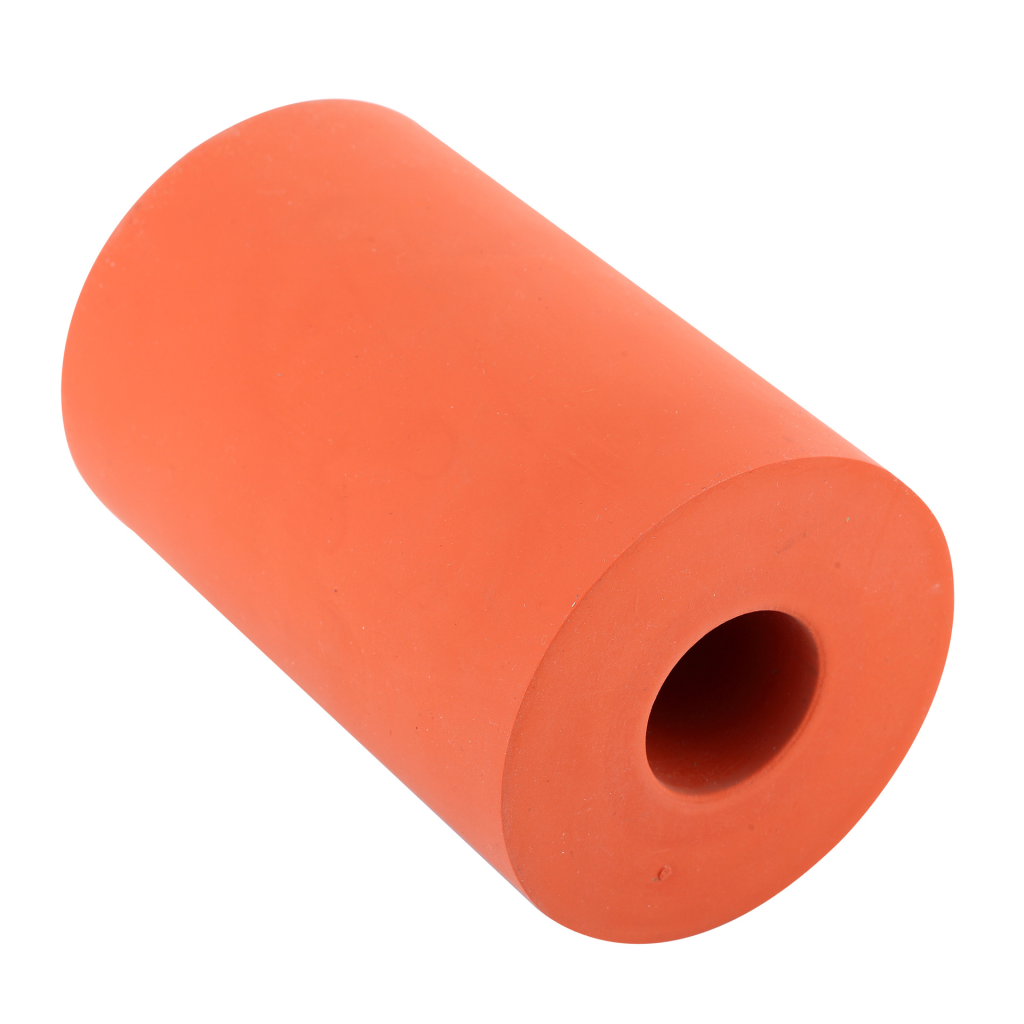

• High-Accuracy Fiber Optic Positioning: Equipped with high-precision fiber optic sensors for print position detection. The auto-positioning function prevents the roller from being crushed due to improper pail placement, significantly reducing the defective product rate.

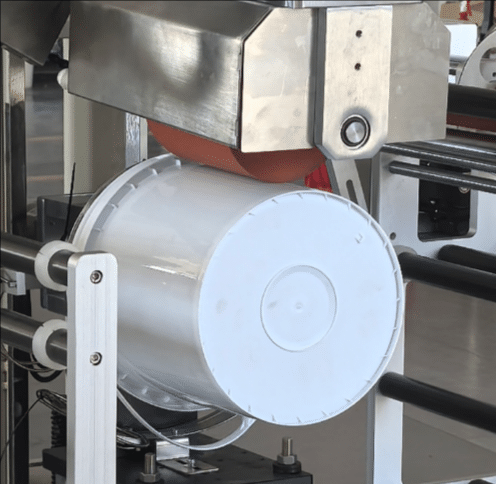

• Intelligent Hot Stamping Head: The hot stamping head is driven by a high-precision servo electric cylinder. Pressure values can be digitally adjusted and stored in the system. Additionally, a high-precision pneumatic cylinder controls the head’s up-and-down motion, ensuring perfect adaptation to round bucket processing.
• Premium Imported Components: Features imported APT switch buttons and Taiwan-made inductive sensors, guaranteeing high sensitivity, long service life, and precise pattern positioning.

• Fully Adjustable Parameters: Transfer temperature, pressure, speed, stamping delay, and film feed delay are all easily adjustable to meet diverse printing requirements.

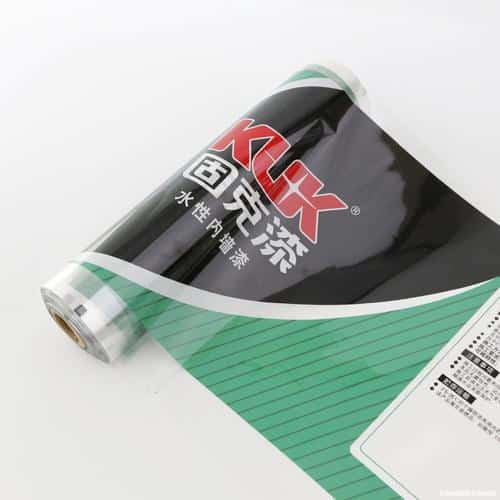

• Automatic Film Feed & Take-up: Equipped with an automated film unwinding and rewinding system to enhance operational efficiency and reduce labor costs.
• Multiple Operation Modes: Comes with an external foot switch and offers three operation selections (Manual / Auto / Foot Pedal) to maximize productivity in various working conditions.
• Three Independent Systems: The machine integrates three independent operational modes for round, square, and oval containers, making it highly versatile across different packaging types.

The pail printing machine offers versatility for different sizes and shapes, ensuring high-quality prints every time.

Our pail printing machine is designed to meet the varying needs of modern printing applications.

With our pail printing machine, you can achieve consistent results across various printing tasks.

The pail printing machine’s design prioritizes both user safety and print precision.

Adjustable settings on the pail printing machine allow for tailored print solutions to fit your specific needs.

Our pail printing machine accommodates a wide range of operational modes for different production environments.

Whether using round or square containers, the pail printing machine excels in performance.

Discover the benefits of using a pail printing machine for your business’s unique printing needs.

Experience seamless printing operations with our advanced pail printing machine.
