Beauty nail production machine introduction

Industrial manufacturing of press-on nails starts with injection molding. The typical production line workflow is: ABS plastic → drying → closed mixing → injection molding → pad printing → spray coating → glue dispensing → packaging.

The beauty nail production machine is essential for efficiently creating high-quality press-on nails.

The beauty nail production machine is crucial for the efficiency of nail production. With the beauty nail production machine, manufacturers can achieve faster turnaround times and higher quality products.

Raw Material Handling & Injection Molding

Utilizing a beauty nail production machine allows for precise handling of ABS pellets, ensuring that the final products meet industry standards.

ABS pellets are mixed with color masterbatch in a color mixer, then injected into precision molds by an injection molding machine to form nail blanks. Molds are custom-designed according to nail shapes (square, round, trapezoid, etc.) and sizes (small, medium, large). A complete mold set usually contains two rows of left and right nail tips in multiple sizes, connected by a skeleton structure to facilitate subsequent mass processing. Some manufacturers adopt extrusion molding combined with laser engravers and laser cutters for contour trimming of nail blanks.

Surface cleaning and activation are required for injection-molded nail tips. For non-polar substrates such as PET, plasma treatment is applied to raise the surface dyne value above 42 mN/m, ensuring strong adhesion of subsequent coating layers.

The versatility of the beauty nail production machine enables manufacturers to produce a variety of styles, catering to diverse market demands.

Core Decoration Processing

This beauty nail production machine is designed for optimal performance, ensuring that curing processes are both efficient and effective.

Utilizing the beauty nail production machine revolutionizes traditional methods and boosts productivity significantly.

Depending on the finished style, nail blanks go through pad printing, spray coating, UV printing and other processing stations.

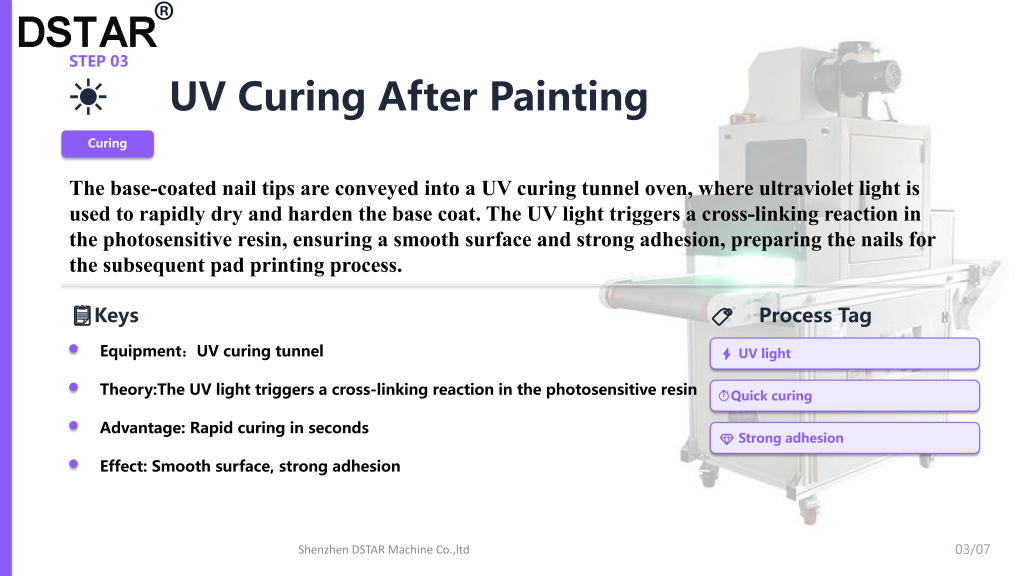

Curing Process

UV / LED light sources are used at a working distance of 8–12 cm to instantly cure ink or gel polish, with curing time ranging from 0.2 to 1 second.

Quality assurance is enhanced with the beauty nail production machine, as it allows for consistent monitoring and inspection of finished products.

The beauty nail production machine is integral to achieving industrial efficiencies and maintaining competitive advantages in the nail production market.

French press-on nails produced with the beauty nail production machine exemplify quality and design precision.

Glue Dispensing & Accessory Mounting

Decorative accessories including rhinestones and metal slices are mounted onto nail surfaces via automatic glue dispensers or visual rhinestone placement robots.

With the beauty nail production machine, manufacturers can create stunning designs that appeal to a wide range of customers.

The innovation of the beauty nail production machine allows for seamless integration of various production processes, enhancing overall output.

The capabilities of the beauty nail production machine extend beyond basic functionalities, supporting advanced techniques in nail artistry.

Packaging

With the beauty nail production machine, creating intricate designs becomes a streamlined process, saving time and resources.

Finished products pass quality inspection and are automatically attached to display cards for final packaging.

Industrial Production Solutions for Typical Styles

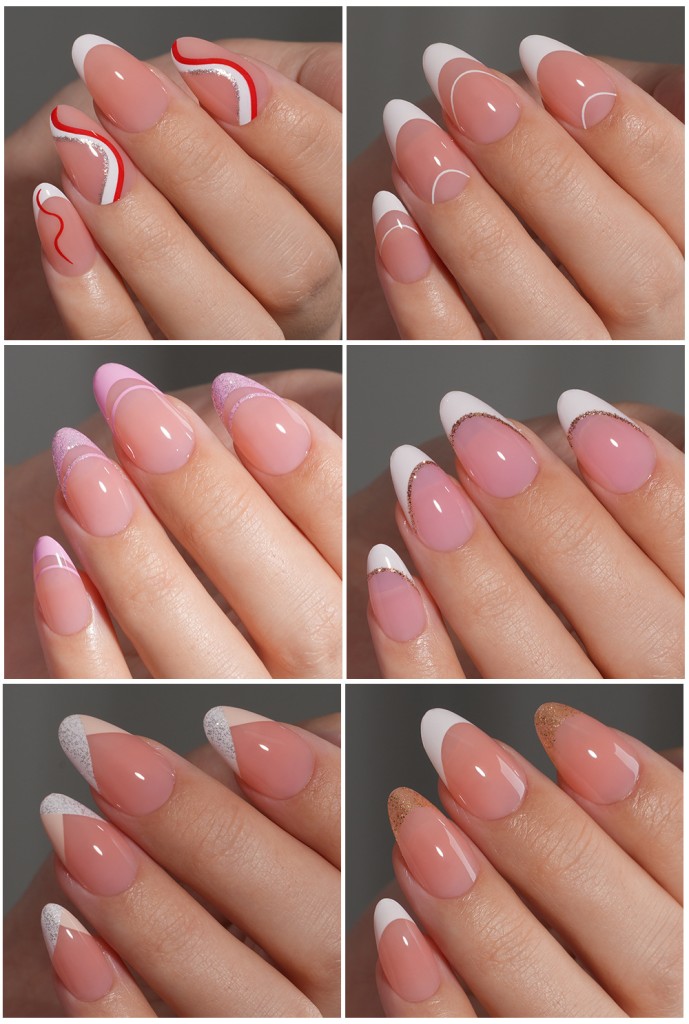

1. French Press-On Nails

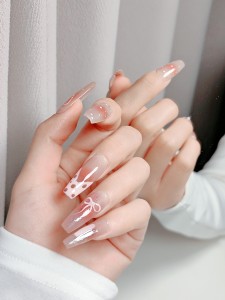

2. Korean-Style Press-On Nails

This innovative beauty nail production machine utilizes advanced technology to achieve precise results in nail production.

Korean nail art features nude pink gradients, cat-eye effects, blending and glass texture. Industrial production combines UV printing and spray coating.

The integration of the beauty nail production machine in industrial settings ensures a high-quality finish for all nail products.

UV printing workflow: Nail blank preparation → plasma pre-treatment → white underlayer printing (providing high-contrast background) → full-color printing (CMYK color stacking) → top coat / sealing layer → UV curing. A single nail tip takes only 10 seconds for printing; mass throughput reaches more than 800 pieces per hour. Prints cure immediately with no air-drying waiting time.

The beauty nail production machine significantly reduces manual labor, allowing for a more efficient workflow in production lines.

For gradient and blended color effects, the automatic spray machine operates with multiple spray guns working synchronously. Digitally controlled spray width and moving speed create smooth color transitions. The gun travel path, atomization pressure and paint output of every nail tip stay identical, with color uniformity error controlled within ±2%.

Core Equipment: Visual UV flatbed printer (equipped with Ricoh G6 or Epson i3200 industrial printheads, CMYK+W+V ink channels), automatic spray machine.

Industrial Implementation of Special Effect Finishes

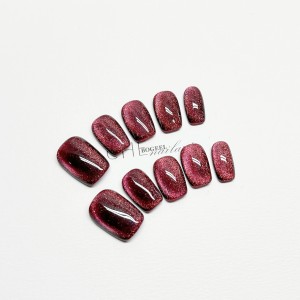

3. Cat Eye Press-On Nails

Industrial mass production of cat-eye nail effect represents one of the biggest technical breakthroughs for beauty nail machine equipment in recent years. Cat-eye gel polish contains magnetic powder. Before curing, magnetic particles are rearranged by magnetic fields to produce shifting light bands that change with viewing angles. This effect was previously only achievable manually. Multiple patented automatic cat-eye nail machines are now available for mass manufacturing.

Overall, the beauty nail production machine is a game-changer in the nail production industry, driving innovation and efficiency.

Working Principle of Automatic Cat-Eye Nail Machine: The unit consists of a housing with through holes, pre-curing modules (LED UV pre-curers mounted on conveyor tracks with cylinder drive), shutter assemblies (hinge covers with sensor switches to cover through holes), and magnetic field generators (neodymium rare-earth magnets, motor, pneumatic rotor and belt transmission inside the housing). When nail tips coated with cat-eye gel are placed on the shutter assembly, the magnetic field generator drives magnets to move following pre-set trajectories. The varying magnetic field rearranges magnetic pigments to form cat-eye patterns. The pre-curing unit immediately locks the particle arrangement by UV curing.

Conveyor magnetic absorption machines deliver higher mass-production efficiency. The magnetic assembly uses hollow-shaft motors to rotate magnetic components and generate continuously changing magnetic fields. The curing unit cures magnetized nail tips through transparent sections on shading plates. The full magnetic forming and curing process runs continuously on conveyor belts without interruption.

The beauty nail production machine not only increases production speed but also enhances the creativity of nail designs.

Custom nail fixtures are critical to guarantee consistent cat-eye patterns. Nail blanks are arranged in two left/right rows connected by a central skeleton. CNC machined metal nail fixtures paired with vacuum adsorption hold nail blanks tightly against the fixture surface, ensuring sharp and standardized cat-eye patterns.

Core Equipment: Automatic cat-eye beauty nail machine (including magnetic field generator, pre-curing unit, shutter assembly and controller) or conveyor magnetic absorption machine. Manual auxiliary tools: handheld magnetic bars / magnetic plates.

4. Hot Stamping Press-On Nails

Hot stamping transfers metallic hot stamping foil onto the ink layer of nail tips via heat and pressure.

Industrial Workflow:

1. UV offset printing of hot-stampable ink. Print a hot-stampable ink layer on nail surfaces to form graphic areas for hot transfer. Adjust ink thickness (thickness ratio between primary and secondary graphic areas from 1:2 to 1:3) to enhance the raised visual effect of stamped patterns.
2. Heat press transfer. Cover the ink layer with hot stamping foil (aluminum foil). The hot stamping machine applies heat and pressure. The aluminum layer separates from base film and adheres onto the ink surface. The adhesive cools rapidly to secure the metallic layer.
3. Cooling, base film peeling and top sealing.

Hot stamping foil options include gold, silver, laser gold, laser silver and multi-color metallic finishes.

Core Equipment: UV offset printer (for hot-stampable ink printing), automatic hot stamping machine (with unwinder, rewinder, heat press and heating module; pneumatic or hydraulic type available).

5. Electroplated Press-On Nails

Using the beauty nail production machine, businesses can better meet the rising demand for high-quality nail products in the market.

Ultimately, the beauty nail production machine empowers companies to enhance their production capabilities and meet customer expectations.

Electroplating uses vacuum coating to deposit ultra-thin metallic or compound films on nail surfaces for mirror-like luster, adapted from precision optical coating technology.

Industrial Workflow: Substrate cleaning and base coating leveling (high requirements for surface flatness). Deposition of metallic thin films inside vacuum coating equipment via physical vapor deposition or magnetron sputtering. Film thickness is controlled between 0.05–0.5 μm; decorative coatings are commonly 0.1–0.2 μm. A 5–10 nm chromium or nickel primer layer improves bonding strength between film and substrate. Cross-hatch adhesion test pass rate ≥95%. Sealing and top protective coating treatment to achieve no corrosion after 24-hour neutral salt spray testing.

Coating material options range from standard aluminum and chromium , titanium-zirconium composite coatings , to multi-layer magnetron sputtered ceramic films such as TiN and ZrN , delivering rose gold, starry blue and other premium metallic tones. Vacuum coating must be performed in a Class 1000 clean room to avoid impurities causing uneven coating.

Core Equipment: Vacuum coating machine (magnetron sputtering or thermal evaporation), plasma cleaning unit, UV curing lamp, spray equipment for base coat and top seal.

With the beauty nail production machine, the production process becomes more streamlined, allowing for more complex designs to be created efficiently.

In conclusion, the beauty nail production machine is essential for modern nail manufacturing, providing unmatched quality and efficiency.

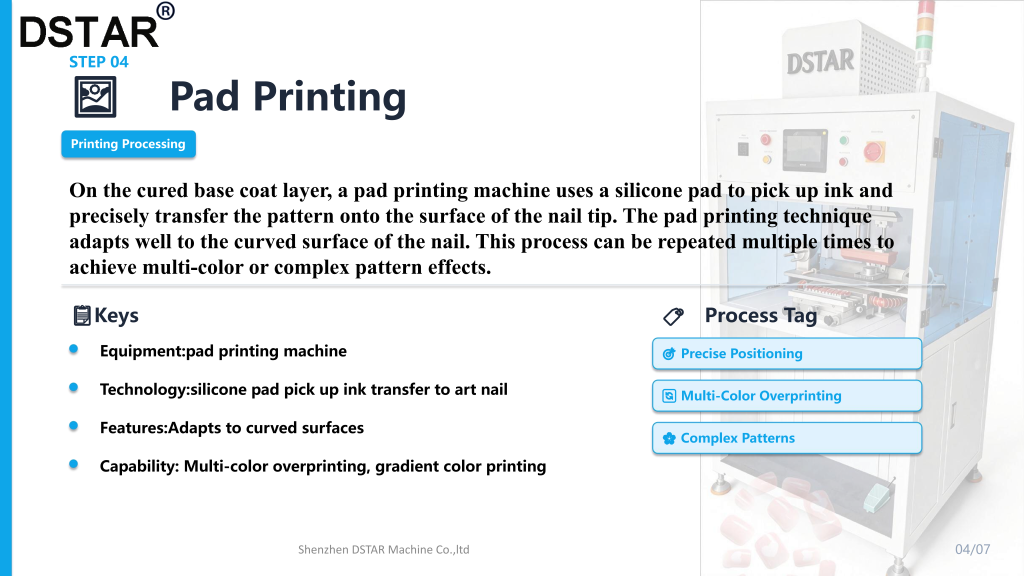

6. Pad Printing Press-On Nails

Pad printing transfers graphics from etched plates onto curved nail surfaces using silicone pads. It is the dominant mass printing process for high-precision small-size patterns.

The beauty nail production machine enhances the aesthetic appeal of nails produced, ensuring high customer satisfaction.

Industrial Workflow: Plate making (0.3–0.5 mm metal steel plate etched or laser engraved) → closed ink cup ink supply → pad inking → pattern transfer onto curved nail tip → hot air drying and curing.

Take DSTAR single-color servo nail pad printer DX-NP1-90 as an example. It adopts full servo motion control and PLC system, printing accuracy of 0.01 mm, printing speed up to 800 cycles per hour. Safety frame structure complies with EU safety standards, equipped with automatic pad cleaning and hot air pad drying functions. Key accessories: custom silicone pad selected according to pattern dimension and nail curvature, printing plates and dedicated nail jigs.

Core Equipment: Servo pad printer (single-color / multi-color), custom silicone pads, printing plates and fixtures.

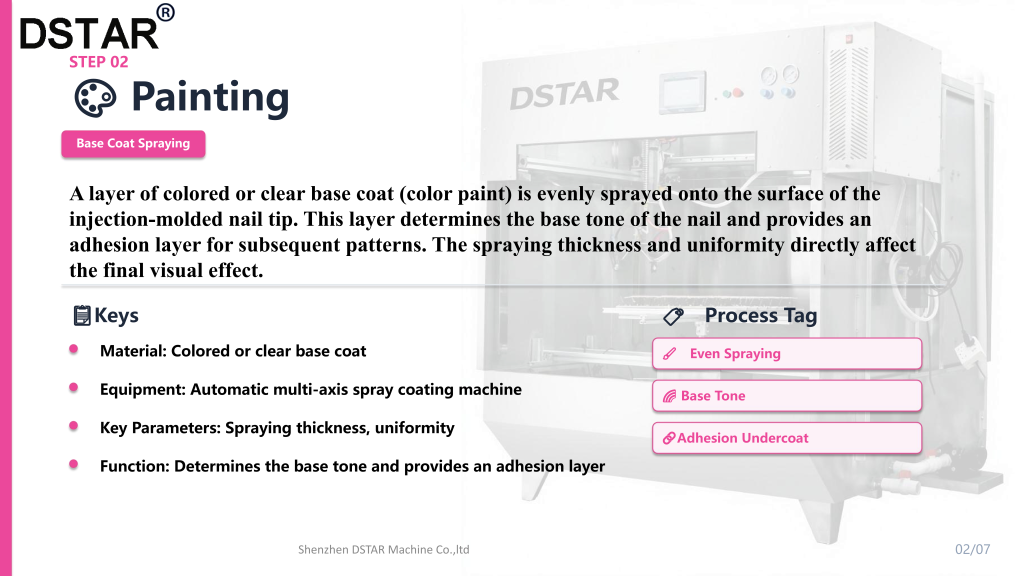

7. Spray Painted Press-On Nails

Spray painting uses automatic spray equipment to atomize gel polish and evenly coat nail surfaces, ideal for mass production of solid-color and gradient base nails.

Industrial Workflow: Nail blanks fixed on custom jigs → ion air dust removal → dual-axis servo inline reciprocating spraying (8 spray guns working simultaneously) → UV curing tunnel with segmented temperature control.

Key equipment parameters: spray stroke width (mainstream models support 5+ nail rows), atomized particle size controlled at 5–15 μm, compatible with base gel, gradient gel, cat-eye gel and top coat; spray gun positioning deviation within 0.1 mm; color change completed within 30 seconds; material utilization rate above 85% for premium models. Workpiece detection sensors trigger spraying only when nail tips are present; the system stops paint output automatically for empty positions.

A single inline spray line can reach an output of 10,000 sets per day, serving as the core beauty nail machine for mechanical mass production of press-on nails.

Core Equipment: DSTAR DX-PY1700 online reciprocating spray host (3-axis servo drive), custom jigs & conveyor chain, ion air dust remover, UV curing oven, water curtain spray booth.

Auxiliary Equipment for Industrial Production Lines

Besides core process machinery, a complete industrial line includes supporting units: Laser cutting / die-cutting machine: For nail blank contour trimming and sticker cutting. CCD visual positioning with ±0.01 mm precision, fast cutting without bubbles or burnt edges. Glue dispensing & rhinestone setting machine: Dual-station glue & rhinestone machine operates with alternating left-right stations, processing over 2,000 nail pieces daily. Visual rhinestone robots complete glue dispensing and stone placement in one step via visual alignment. Automatic card mounting machine: Attaches finished nails onto display cards automatically. The pipeline consists of feeding, glue dispensing, nail cutting and nail card mounting modules.

Industrial Production Equipment Quick Reference Table

Style / Process	Core Processing Method	Key Equipment	Typical Efficiency
French	Masked spray / UV printing	Automatic spray machine or visual UV printer	Spray: 10,000 sets/day; UV printing: 800 pcs/h
Korean Style	UV printing + spray coating	Visual UV flatbed printer + automatic spray machine	10 sec per piece
Cat Eye	Magnetic forming + pre-curing	Automatic cat-eye beauty nail machine / conveyor magnetic machine	Continuous conveyor operation
Hot Stamping	Ink printing + heat transfer	UV offset printer + automatic hot stamping machine	Depends on machine configuration
Electroplating	Vacuum coating	Magnetron sputtering vacuum coater	Class 1000 clean room required
Pad Printing	Silicone pad transfer	Servo pad printer (single / multi-color)	500–1200 pcs/h
Spray Coating	Atomized automatic spraying	Inline reciprocating spray line with 8 spray guns	10,000 sets/day

The core logic of industrial mass production relies on standardized jigs, automated beauty nail machine systems and synchronized continuous conveying. After injection molding, nail blanks are secured on unified jigs and flow sequentially through pad printing, spray coating, UV printing, magnetic curing, glue dispensing and other stations. Each station performs one standardized operation, supporting full capacity coverage from basic styles to trendy nail art designs.
