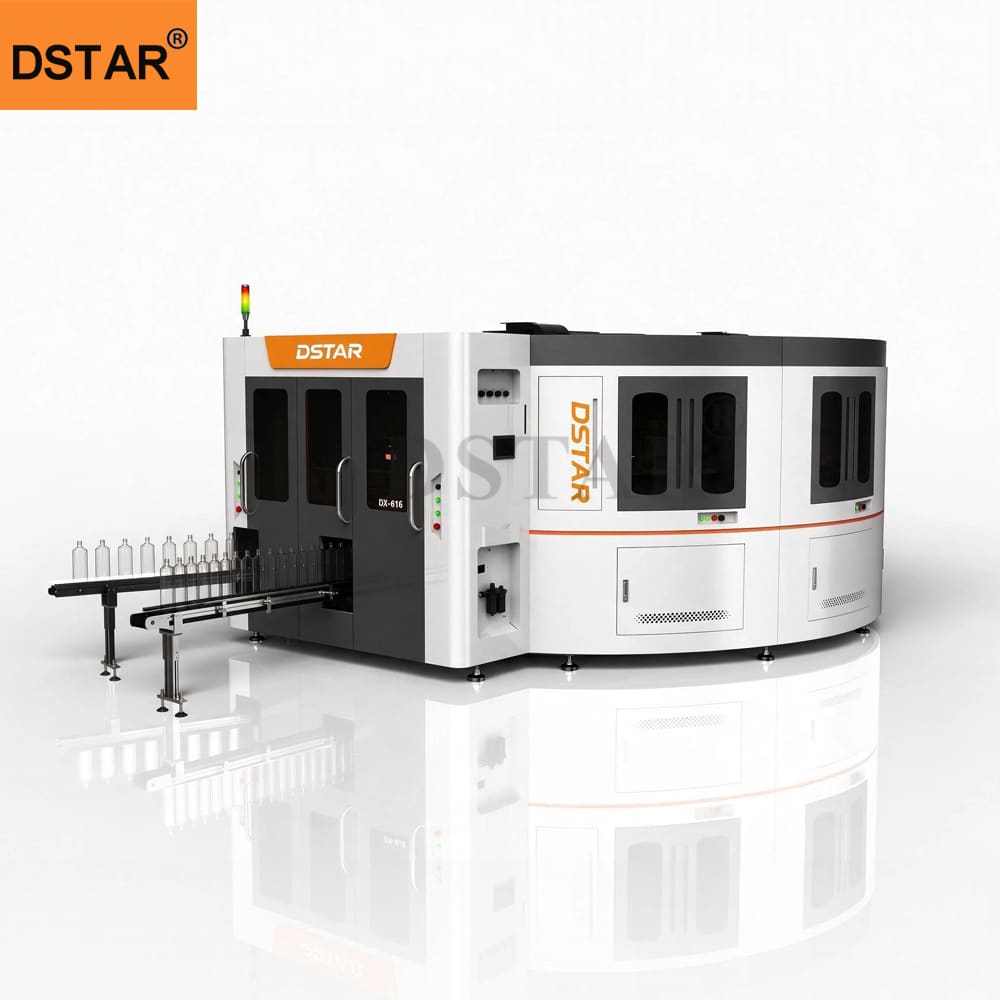

Fully Automatic 6-Color Servo Bottle Printing Machine with Hot Stamping & CCD Vision

What is the High-Speed Rotary Bottle Printing Machine?

The 6-Color Multi-Functional Full-Servo Rotary Automatic Screen Printing and Hot Stamping Machine represents the next generation of automated direct-to-container decoration technology. Designed for high-efficiency packaging production, this advanced bottle printing machine seamlessly integrates multi-color screen printing, hot foil stamping, precision CCD vision positioning, surface pre-treatment, and rapid curing systems into a single, high-speed rotary platform.

Engineered to handle various container geometries—including cylindrical, oval, flat, and square bottles—this versatile bottle printing machine is widely utilized across cosmetic, beverage, spirits, pharmaceutical, and personal care packaging industries. Whether decorating premium glass wine bottles, luxury acrylic jars, or flexible cosmetic tubes, this machinery delivers unmatched registration accuracy, operational stability, and rapid color-change capabilities.

Key Features & Advantages of the Rotary Bottle Printing Machine

1. Advanced CCD Vision Positioning & High Automation

• Dual Vision Registration: Equipped with optional bottom-vision alignment and side-line scanning vision positioning. The machine automatically aligns registration marks on glass or plastic containers with high repeatability, eliminating registration errors caused by mold lines or irregular bases.
• Full Servo Motion Control: Every printing station, fixture rotation, and squeegee stroke is driven by independent high-precision servo motors, ensuring ultra-smooth indexing and minimal set-up times.
• User-Friendly Touch Screen Interface: Allows operators to set parameters, save job profiles, and perform quick visual diagnostics effortlessly.

2. Flexible Feeding, Surface Pre-Treatment & Quick Interactivity

• Versatile Infeed/Outfeed Systems: Configurable for horizontal or vertical container loading and unloading based on upstream and downstream automation lines.
• Integrated Surface Pre-Treatment: Built-in electrostatic dust removal and high-efficiency flame treatment systems guarantee optimal surface tension and ink adhesion on materials like PP, PE, PET, and coated glass.
• Modular Workstation Design: Screen printing and hot stamping heads can be rapidly swapped. The platform can also integrate optional modules for foil stamping, labeling, heat transfer printing, and UV varnish spraying.
• Multiple Curing Options: Accommodates traditional UV lamps, energy-saving LED-UV curing units, or hot air drying modules according to ink formulations and product requirements.

3. Global Tier-1 Components & Robust Construction

• World-Class Components: Constructed using top-grade mechanical, pneumatic, and electronic components sourced from industry-leading brands across Germany, Japan, France, the USA, and Taiwan.
• Industrial Durability: Heavy-duty frame construction minimizes vibration during high-speed operation, guaranteeing steady 24/7 continuous industrial production with a peak output of up to 3,600 pieces per hour.

Supported Product Applications & Container Types

This multi-color rotary bottle printing machine is adaptable to a broad range of substrates including glass, acrylic, PET, PE, PP, and aluminum containers:

1. Spirits & Wine Packaging: Premium red wine bottles, liquor/spirits glass bottles, beer bottles, and custom beverage containers.
2. Cosmetics & Personal Care: Acrylic cream jars, lotion pump bottles, plastic squeezable tubes, perfume bottles, and mascara tubes.
3. Daily Chemical & Household: Glass condiment jars, soy sauce bottles, liquid detergent bottles, and shampoo containers.
4. Pharmaceutical Packaging: Glass/plastic medicine bottles, syrup bottles, and health supplement containers.

Screen Printing Supplies

• Squeegee
• Screen printing plate
• Screen printing ink
• Bottle Fixture

Frequently Asked Questions (FAQ)

Q1: Can this bottle printing machine handle both plastic and glass containers?

Yes. The machine features built-in flame pre-treatment and electrostatic dust cleaning, essential for preparing plastic materials (such as PE, PP, or PET) for printing. For glass containers, specialized glass inks combined with optional UV or hot-air curing modules ensure maximum adhesion and scratch resistance.

Q2: How does the CCD camera positioning improve printing quality?

The dual-vision CCD system reads subtle physical features or optical registration marks at the bottom or side of the bottle. This ensures that multi-color overlays and hot foil stamping align precisely with existing mold seams or prior print layers, drastically reducing reject rates compared to mechanical pin registration.

Q3: Is it possible to combine screen printing and hot stamping in a single pass?

Yes. The modular station layout allows seamless integration of 6 screen printing heads, hot stamping heads, or varnish spraying units on the same rotary carousel, delivering finished, multi-process decorated bottles in one continuous production cycle.
