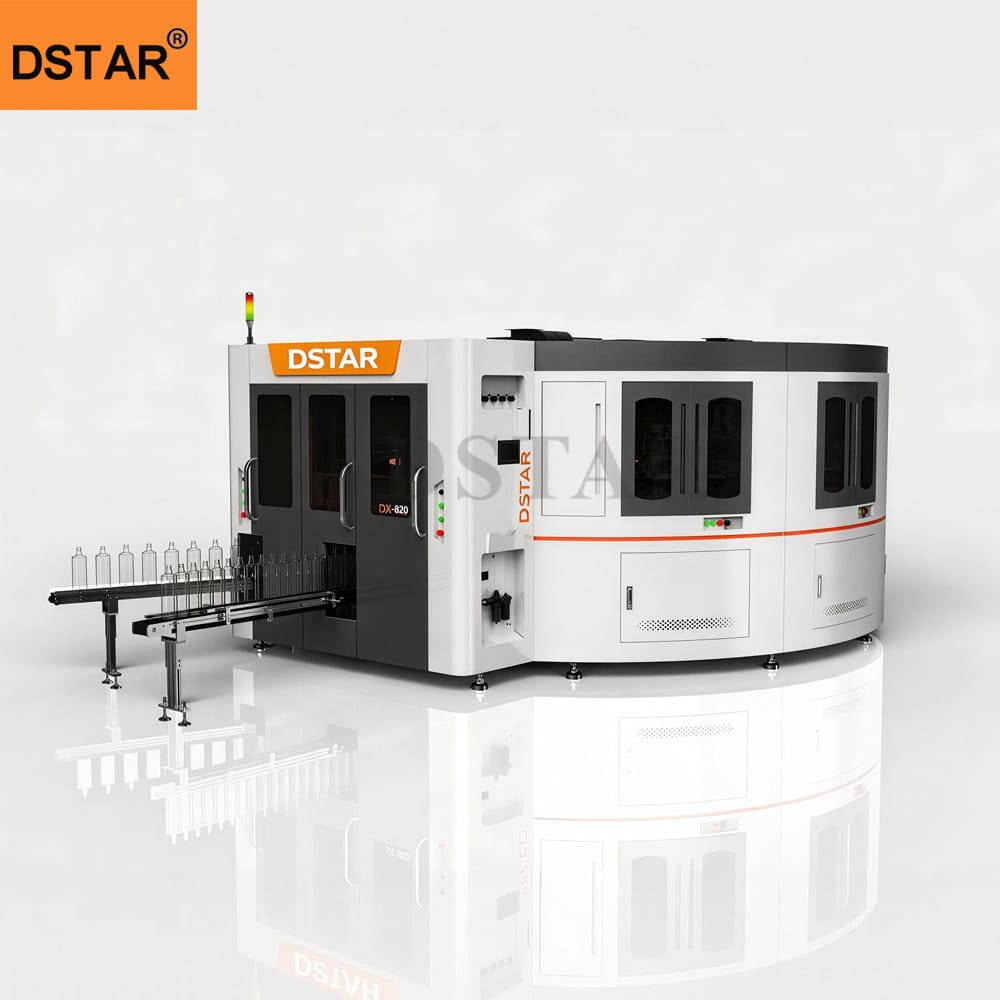

8 Color Full Servo CNC Bottle Printing Machine

High-Precision 8-Color Full Servo CNC Bottle Printing Machine: Ultimate Container Decoration Guide

The CNC bottle printing machine is a high-speed, 8-color full-servo rotary automatic screen printing and hot-stamping solution designed for cylindrical, oval, and square containers. Equipped with double vision CCD alignment (bottom and side line-scan), it achieves precise multi-color registration at speeds up to 3,600 pcs/hour. It integrates flame pretreatment, electrostatic dust removal, screen printing, hot stamping, and UV/LED curing into a single continuous process.

Overview of the Advanced CNC Bottle Printing Machine

In modern premium packaging industries—such as luxury spirits, cosmetics, and specialty food containers—surface decoration demands extreme precision, multi-process versatility, and stable long-term operation. The CNC bottle printing machine is engineered to meet these rigorous standards by combining full-servo CNC motion control, intelligent optical alignment, and flexible modular workstations.

Whether processing red wine glass bottles, square liquor bottles, acrylic cream jars, or cosmetic squeeze tubes, this machine delivers flawless printing, foil stamping, and protective varnish application in a single automated pass.

Core Technologies & Key Performance Features

1. Dual Vision Positioning System (CCD Alignment)

• High Precision Registration: Integrates both bottom visual positioning and side line-scan visual positioning to guarantee exact color-to-color registration on irregular or non-handled bottles.
• Rapid Automated Setup: Replaces mechanical registration lugs with optical detection, significantly speeding up job changeovers.

2. Full-Servo Rotary Architecture & Modular Flexibility

• Multi-Axis CNC Servo Control: Every printing station and rotary spindle is individually driven by precision servo motors, allowing smooth index rotation and precise squeeze pressure management.
• Interchangeable Workstations: Modules for screen printing, foil hot-stamping, thermal transfer, labeling, and protective varnish spraying can be quickly reconfigured or swapped based on production needs.

3. Integrated Surface Pretreatment & Curing Options

• Pretreatment: Built-in electrostatic dust elimination and flame surface treatment prepare glass and plastic substrates for optimal ink adhesion.
• Curing Flexibility: Compatible with conventional UV lamps, low-heat LED-UV curing, and hot-air drying modules to accommodate specialized UV and thermal inks.

4. Global High-Spec Mechanical & Electrical Components

• The core drive motors, PLC units, vision sensors, and pneumatic control components are imported from leading global manufacturers across Taiwan, France, Germany, the United States, and Japan, ensuring 24/7 industrial operational reliability.

Key Application of screen printing machine

The high flexibility of this CNC bottle printing machine allows seamless operation across multiple manufacturing sectors:

• Distillery & Beverage Glassware: Premium multi-color graphics and gold/silver hot stamping on red wine bottles, white wine/liquor bottles, sauce containers, and beverage packaging.
• Cosmetics & Personal Care: Fine line typography and gradient screen printing on acrylic cream jars, foundation bottles, lotion pumps, and cosmetic tubes.
• Industrial & Daily Chemicals: High-durability screen printing on chemical tubes, detergent containers, and specialty glass jars.

Screen printing supplies

• Squeegee
• Ink
• Screen printing plate (stencil)
• Bottle Fixture

Q1: What makes a CNC bottle printing machine superior to traditional mechanical screen printers?

A: Unlike mechanical gear-driven printers, a CNC bottle printing machine utilizes independent servo motors for each axis combined with vision sensors. This allows for digital parameter adjustment, quick recipe saving for fast changeovers, zero mechanical backlash, and precise multi-color registration on complex oval or square geometry.

Q2: Can this machine handle both glass and plastic containers?

A: Yes. By combining surface flame pretreatment (for plastic energy activation) and adjustable UV/LED-UV curing systems, the machine achieves superior ink cross-linking and adhesion on glass, acrylic, PET, and PE substrates.
