Shenzhen Dstar Machine Co.,ltd    E-mail:dstar@printing-machine.com
  |

Screen printer/Machines/

screen printer factory price DX-6090P

Product:flat bed screen printing machine

Model:DX-6090P

Worktable size:600*900mm

Max printing size:550*850mm

Printing speed:800cycles/hr

N.W:630KGS

Power:AC220V/3.5KW

  • Product Detail
  • Screen printing samples

Product:screen printer factory price

ItemDX-3050PDX-4060PDX-5070PDX-6090P
Worktable size(cm)30*5040*6050*7060*90
Max printing size(cm)25*3535*4545*6555*85
Max screen plate frame size (cm)45*7355*8365*9375*113
Screen printer machine size (cm)80*92*16580*102*16590*120*165100*132*165
Machine weight(KGS)380450520630
Max printing speed(pcs/hr)900880850800
Power(KW)22.53.53.5
Air consume(Mpa)0.4-0.60.4-0.60.4-0.60.4-0.6
Technical parameters for screen printing machine

Machine features:

1.Vertical structure and electronic drive,PLC control system.
2.Cast aluminum processing for machine printing parts.
3.Machine speed and stroke can be adjusted under motor drive
4.There is manual test,single model and full automatic model for optional
5.automatic counter for printing
6.Independent machine lifting device.
7.It’s equipped with sliding block.screws on right and left arm to adjust screen plate position
8.The angle for ink printing and ink scraping can be adjusted.

Optional function:

1.modify from electronic drive to servo motor drive
2.automatic feeding or unloading device
3.vacuum work table
4.touch screen control panel

Screen printer factory price consumables:

1.Printing plate

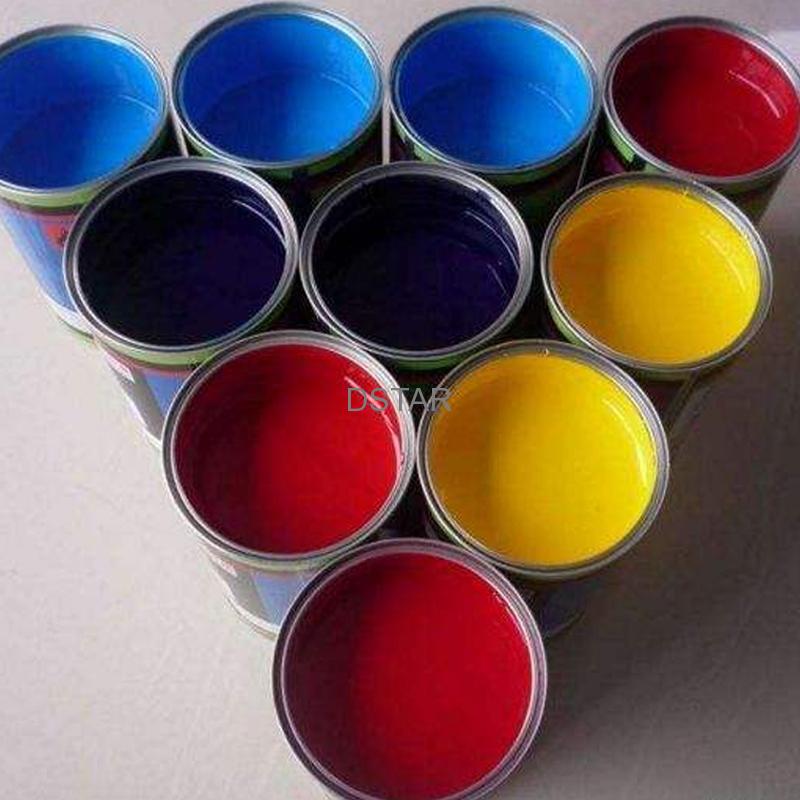

2.Ink

3.Polyester Squeegee

Screen printing machine applications:

  • PET, PVC, PE, PV, PP, BOPP film material
  • heat transfer label, adhesive sticker, Vulcanizing label, membrane switches, soft circuit board (flexible printed circuit )
  • printed electronics, control panels, graphics overlay, IMD (In-mold decoration label, IML
  • RFID antenna, FPC, ceramic decals, motorcycle helmet decals, nameplate

Samples:

Screen printing samples

Machine videos:

machine video

label screen printing pcb screen printing panel screen printing
