UV laser machine for pad printing plate

Product nameUV laser etching machine ModelDX-UVLD Laser sourceUV laser Laser wavelength355nm Pulse repetition Rate10-120KHZ Beam quality(M2)<1.2 Laser power3W/5W/10W/20W Working area70*70mm/110*110mm

  • Product Detail
laser etching machine for pad printing plate

Product name:UV laser etching machine

Model:DX-UVLD

Laser source:UV laser

Laser wavelength:355nm

Pulse repetition Rate:10-120KHZ

Beam quality(M2):<1.2

Laser power:3W/5W/10W/20W

Working area:70*70mm/110*110mm

Max marking speed:15000mm/s

Cooling mode:fan cooling

Working temperature:10-25°C

Power supply:AC220V/50Hz

Size:L315*W600*H700mm

UV laser etching samples

UV laser engrave machine samples
UV laser machine

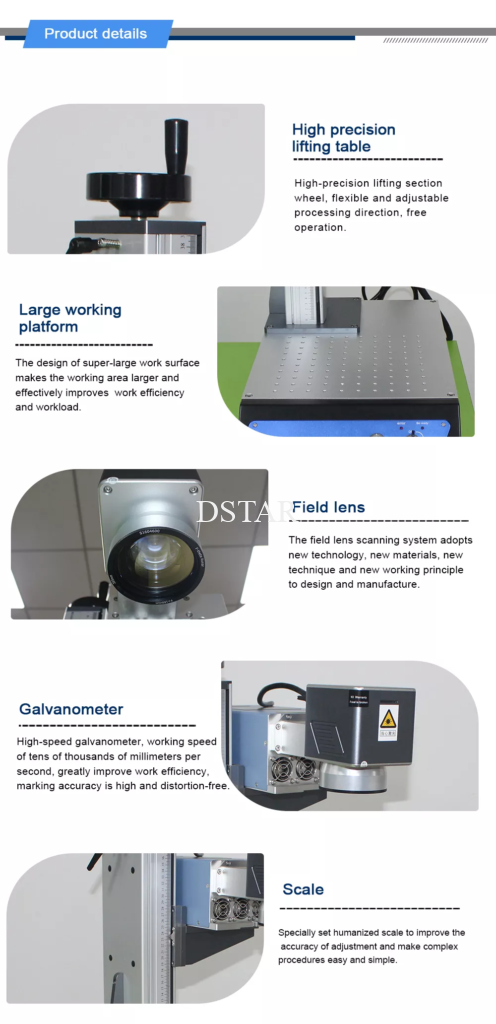

UV laser machine details

Advantages of Integrated UV Laser Etching

1.Cosmetics, other polymer materials and packaging bottle surface marking

2.Electrical Engineering and Electrical part and component

3.Mobile (Cover, battery, keyboard, Phone Case)

4.Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses, jewelry

5.Building materials, PVC pipe

6.Plastic case, majority of the metal and non-metallic materials for surface processing and coating film processing

7.Food and beverage, Medicine package and medical instrument, solar PV industry

8.Flannelette surface marking, have a certain depth, no burning

Applications of Small UV Laser Etching Machine

1.Cosmetics, other polymer materials and packaging bottle surface marking

2.Electrical Engineering and Electrical part and component

3.Mobile (Cover, battery, keyboard, Phone Case)

4.Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses, jewelry

5.Building materials, PVC pipe

6.Plastic case, majority of the metal and non-metallic materials for surface processing and coating film processing

7.Food and beverage, Medicine package and medical instrument, solar PV industry

8.Flannelette surface marking, have a certain depth, no burning

Why need a UV laser etching machine?

1. No thermal effect and scorch problem

UV laser source is cold laser source.It outputs shorter wavelength,smaller focus spot.The marking effect is precise and refined due to the good quality laser beam without thermal effect and scorch

2. Wide Application:UV laser can be absorbed by most of material due to its shorter wavelength

3. Eco-friendly and high-productivity:no toxicity,high marking speed as well low power consumption
